Displacement sensor
LMG series
Key words:
LMG series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: LMG series
- Commodity ID: LMG
- Category: Displacement sensor
- Model No.: LMG
-
● Angle characteristics max. mirror detection ± 60 °
● Ultra high sampling frequency up to 33kHz
● Insensitive to object materials, stably detects all materials (including transparent and reflective materials)
● Max. Accuracy 0.2 μm
● Multiple detection heads meet different installation modesGeneral Parameters
Product Parameters-Controller Product model LMG-01A LMG-01B LMG-02A LMG-02B Max. quantity of connecting sensor heads 1 pc 2 pcs Sampling cycle 0.5kHz/1kHz/2kHz/5kHz/10kHz/15kHz/20kHz/33kHz(8 levels optional) Specification of fiber optic wire 3m(default) Interface Network port: numerical output; 1000BASE-T/100BASE-TX;

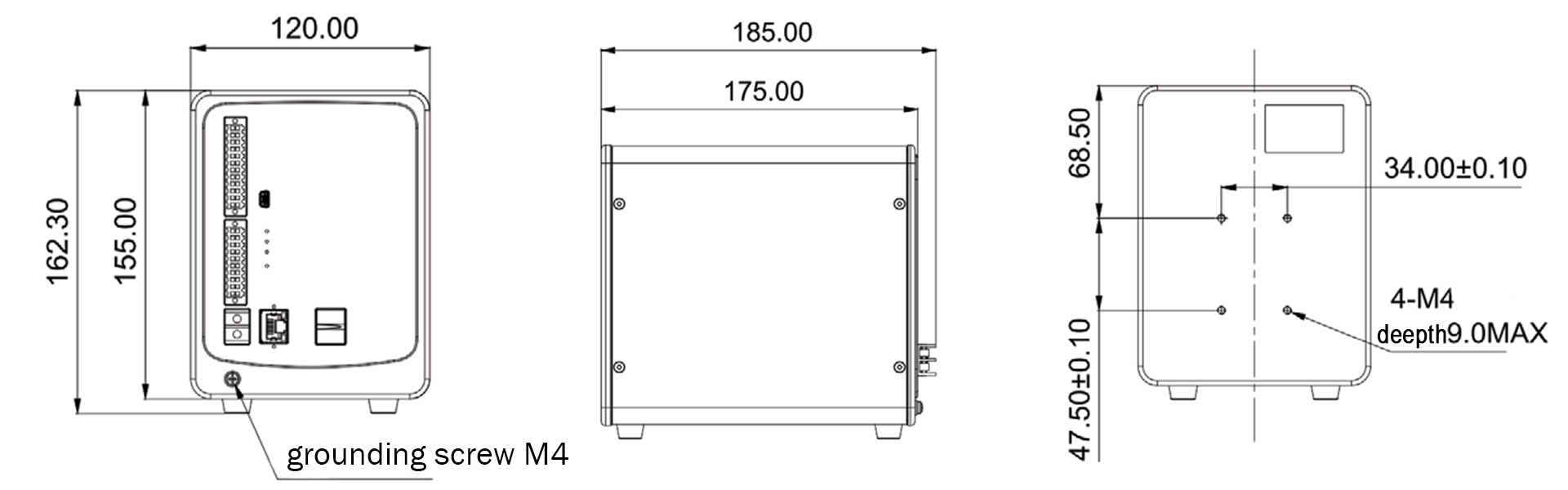

RS-232: 1 channel, baud rate: 9600 to 115200bps; Data length: 8-bit; Stop bit: 1 bit; Parity: None/Even/OddSwitch input NPN /PNP；Type timing (synchronous) input, zeroing (synchronous) input, resetting (synchronous) input, timing (binary) input, zeroing (binary) input, resetting (binary) input, laser control input, binary selection input, program number switching input Switch output 4 channel NPN extreme open circuit output Analog output Analog output: 3 channels; Voltage output: 0~10V output, output impedance: 100 Ω; Current output 4~20mA output, maximum allowable load impedance: 300 Ω Encoder input Support 3-channel 2-phase 5V differential encoder input Response frequency RS-422 linear drive: single-phase 2.3MHz, 2-phase/1 incremental 2.3MHz, 2-phase/2 incremental 4.6MHz, 2-phase/4 incremental 9.2MHz Heat dissipation Fan-cooling Supply voltage 24VDC±10% Current consumption 2.0A 3.4A Mechanical Parameters Material Aluminium Dimension 120*155*175 Weight 2158g 2425g Environment Parameters Working ambient -10~50℃ (no freezing, no condensation) 35%~85%RH(no freezing) Anti vibration 10~57Hz，Double amplitude 1.5mm，2hrs X、Y、Z in each direction Product Parameters - Sensing Head Product model LMG-10 LMG-12 LMG-16 LMG-40 LMG-70 Controller LMG-01A/LMG-01B/LMG-02A/LMG-02B Clamp model LMG-01 LMG-02 LMG-01 LMG-01 LMG-01 Light spot size 7.1μm/14.9μm 5.8μm/12.2μm 12μm/25.2μm 19.2μm/40.3μm 55μm/115μm Work distance 10mm 12.8mm 16mm 40mm 70mm Measurement range 1mm 3.5mm 4mm 10mm 20mm Resolution 0.006μm 0.006μm 0.006μm 0.012μm 0.025μm Linearity ±0.2μm ±0.7μm ±0.8μm ±1.6μm ±2.2μm Angle characteristics ±45° ±60° ±25° ±15° ±11° Min. thickness of transparent object 30μm 150μm 130μm 300μm 660μm Diameter 47mm 83mm 30mm 30mm 62mm Length 148.6mm 229mm 114mm 111.5mm 123.9mm Weight 350g 2300g 95g 127g 258g Dimensional diagram
-

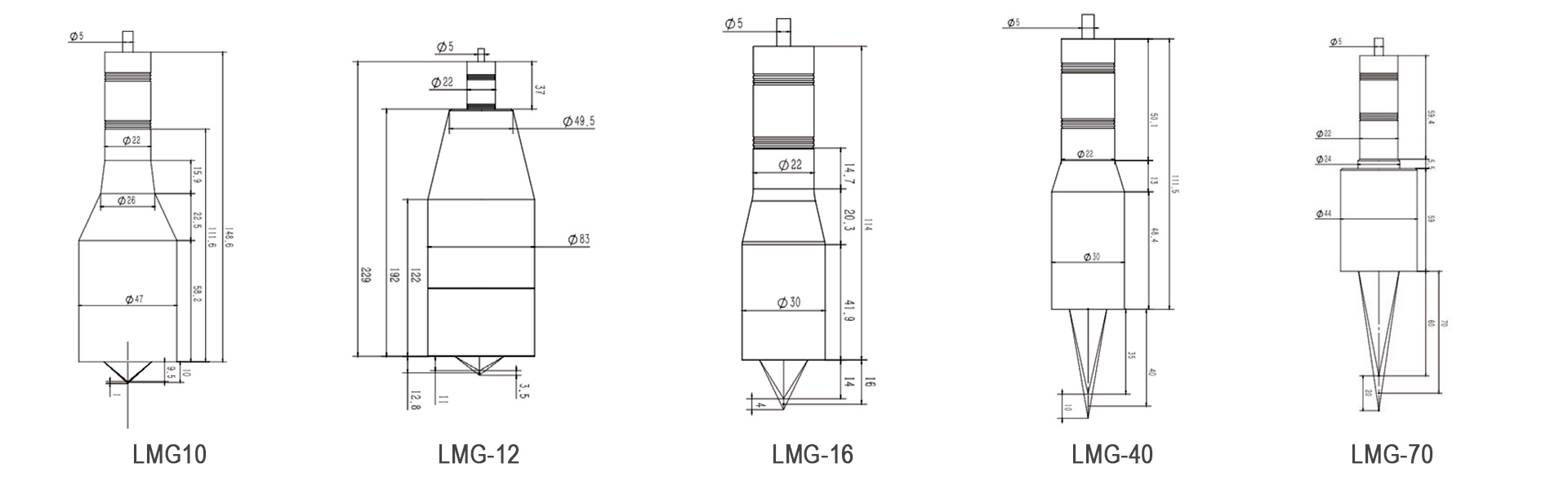

Product Type Reference Distance Product Model Controller -- LMG-01A -- LMG-01B - LMG-02A - LMG-02B Sensing Head 10mm LMG-10 12.8mm LMG-12 16mm LMG-16 40mm LMG-40 70mm LMG-70
