Displacement sensor

LF44 series

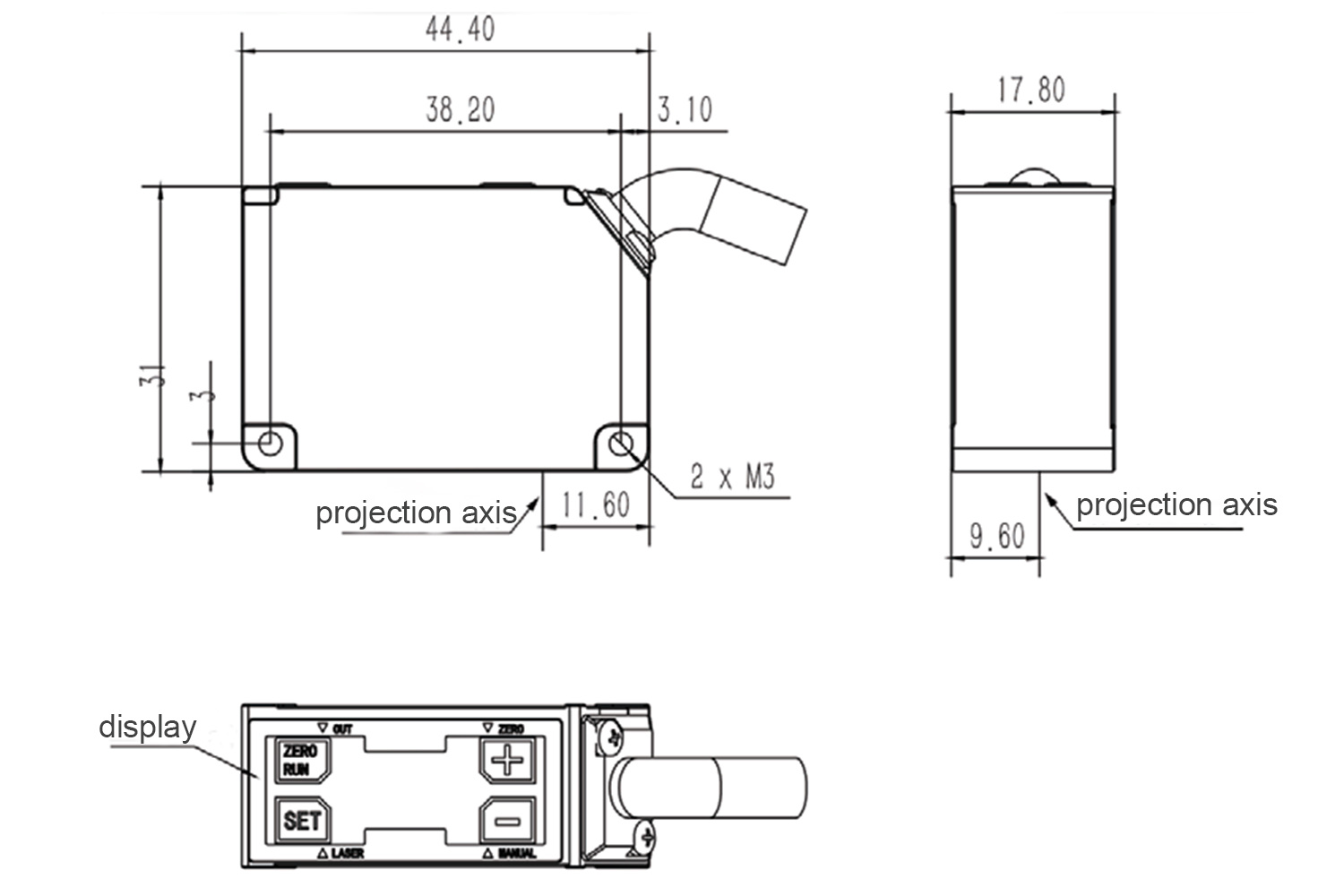

Working principle based on laser triangulation method, the LF44 displacement sensor has an enclosure dimension of 17.8mm thickness x 44mm height x 31mm long. The laser emitter emits laser light onto the surface of the object being measured through lens, and the reflected light is received by an internal CCD linear camera through receiver. Based on the position change of the light spot, the digital signal processor calculates the distance between the sensor and the measured object. This method is suitable for high-precision, short-range measurements.

Key words:

LF44 series

  • Description
  • Specs
  • Model
    • Commodity name: LF44 series
    • Commodity ID: LF44
    • Category: Displacement sensor
    • Model No.: LF44

    Working principle based on laser triangulation method, the LF44 displacement sensor has an enclosure dimension of 17.8mm thickness x 44mm height x 31mm long. The laser emitter emits laser light onto the surface of the object being measured through lens, and the reflected light is received by an internal CCD linear camera through receiver. Based on the position change of the light spot, the digital signal processor calculates the distance between the sensor and the measured object. This method is suitable for high-precision, short-range measurements.

    Working principle based on laser triangulation method, the LF44 displacement sensor has an enclosure dimension of 17.8mm thickness x 44mm height x 31mm long. The laser emitter emits laser light onto the surface of the object being measured through lens, and the reflected light is received by an internal CCD linear camera through receiver. Based on the position change of the light spot, the digital signal processor calculates the distance between the sensor and the measured object. This method is suitable for high-precision, short-range measurements.

  • ● Small light spot, high precision
    ● Multi functional display screen, convenient debugging and setting
    ● Multiple sensing distance and models
    ● IP67
    ● Optional interfaces,TCP/IP RS485 analog switching



    General Parameters

    Product Parameters
    ModelLF44C-015-□LF44C-035-□LF44C-100-□LF44C-150-□
    Reference distance15mm35mm100mm150mm
    Measurement range±5mm±15mm±50mm±100mm
    Light source655nm, laser class II
    Spot diameterClose range30*110μm120*180μm160*550μm200*500μm
    at reference distance50*200μm100*580μm300*1500μm400*2300μm
    long-range100*400μm220*900μm500*2500μm800*3500μm
    Repeatability1μm6μm20μm60μm
    Linearity±0.1% F.S.

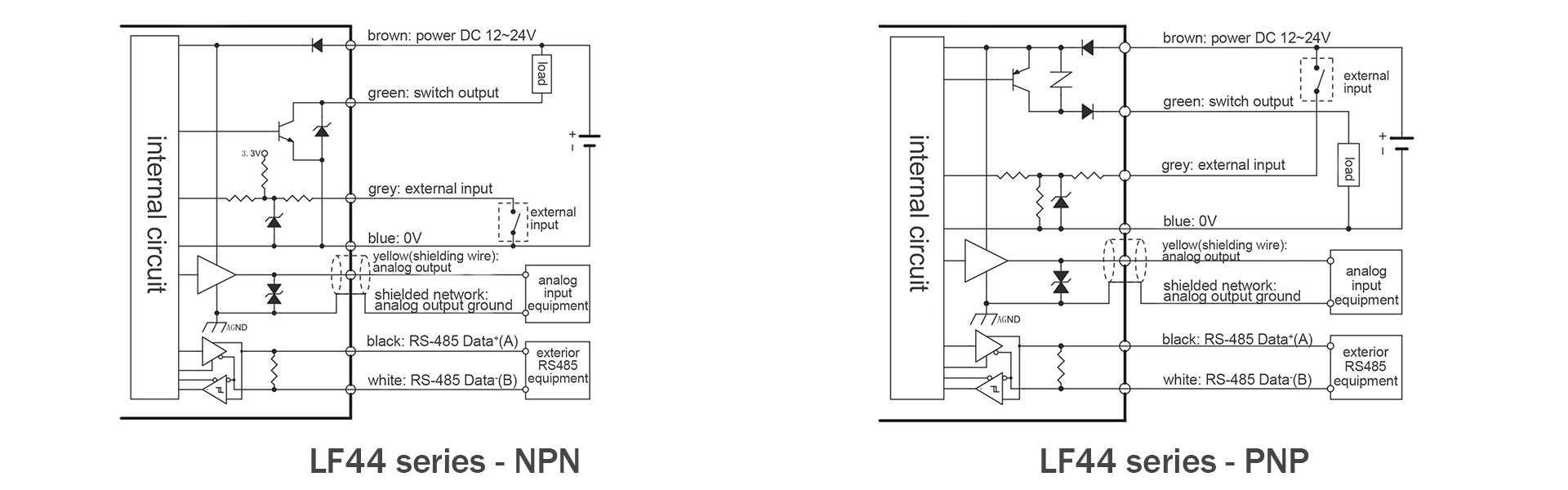

    Electrical Parameters
    Supply voltage12~24VDC
    Current consumption>10W
    Control outputCommunication portOne RS485 (support Modbus RTU)
    Analog output1 route analog output,analog voltage and analog current selected by model
    IO output1 routejudgment status output
    Output actionNPN/PNP, light on /dark on switchable
    Short circuit protectionProvided (automatic recovery type)
    Analog outputVoltage analog output range: 0~10V; Current analog output range: 4~20mA
    Sampling frequency300/500/1000/2000/3000 Hz
    External output1 route, support functions such as turning off light sources, teaching demonstration, and sampling
    Mechanical Parameters
    Housing materialAluminium alloy
    Connecting typeΦ0.15mm, 8 core, complex cable 2m or 5m
    Weight70g
    Protection ratingIP67
    Environmental Parameters
    Ambient feature0.05%F.S./
    Ambient lightnessIncandescent lamp 3000Lux
    Ambient temperature-10~50no freezing, no condensation35%~85%RH
    Storage temperature-20~70,35%~85%RH
    Vibration resistance10~55Hz, amplitude of vibration 1.5mmin XYZ directions2h in each direction
