Displacement sensor
LF60 series
Key words:
LF60 series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: LF60 series
- Commodity ID: LF60
- Category: Displacement sensor
- Model No.: LF60
Laser displacement sensors are widely used in various applications that require high-precision measurement, such as industrial automation which used to measure the position and displacement of objects on the production line, ensuring precise control of the production process. Laser displacement sensors help robots navigate accurately and avoid obstacles. Electronic manufacturing, for example detecting PCB board deformation, weld contour, etc. to ensure product quality.
Laser displacement sensors are widely used in various applications that require high-precision measurement, such as industrial automation which used to measure the position and displacement of objects on the production line, ensuring precise control of the production process.
Laser displacement sensors help robots navigate accurately and avoid obstacles.
Electronic manufacturing, for example detecting PCB board deformation, weld contour, etc. to ensure product quality. -
● Small light spot, high precision
● Multi functional display screen, convenient debugging and setting
● Multiple sensing distance and models
● IP67
● Optional interfaces, TCP/IP RS485 analog switchingGeneral Parameters
Product Parameters Model LF60C-030-□ LF60C-050-□ LF60C-085-□ LF60C-195-□ Reference distance 30mm 50mm 85mm 195mm Measurement range ±4mm ±10mm ±15mm ±99mm Light source 655nm, class II laser Spot diameter Close range 80*180μm 120*230μm 150*600μm 230*600μm At reference distance 70*260μm 110*440μm 140*990μm 430*2000μm Long-range 100*400μm 150*670μm 190*1200μm 700*3300μm Repeatability 2μm 5μm 10μm 50μm Linearity ±0.1% F.S. Electrical Parameters Supply voltage 12~24VDC Current consumption >10W Control output Communication port One RS485 Analog output 1 route analog output,analog voltage and analog current selected by model IO output 1 route，judgment status output Output action NPN/PNP, light on /dark on switchable Short circuit protection Provided (automatic recovery type) Analog output Voltage analog output range: 0~10V; Current analog output range: 4~20mA Sampling frequency 300/500/1000/2000/3000 Hz External output 1 route, support functions such as turning off light sources, teaching demonstration, and sampling Mechanical Parameters Housing material Aluminium alloy Connecting type Φ0.15mm, 8 core, complex cable 2m or 5m Weight 120g Protection rating IP67 Environmental Parameters Ambient feature 0.05% F.S./℃ Ambient lightness Incandescent lamp 3000Lux Ambient temperature -10~50℃ (no freezing, no condensation) 35%~85%RH Storage temperature -20~70℃,35%~85%RH Vibration resistance 10~55Hz, amplitude of vibration 1.5mm, in X、Y、Z directions, 2h in each direction compliance with IEC 68-2-6Fc standard Dimensional diagram

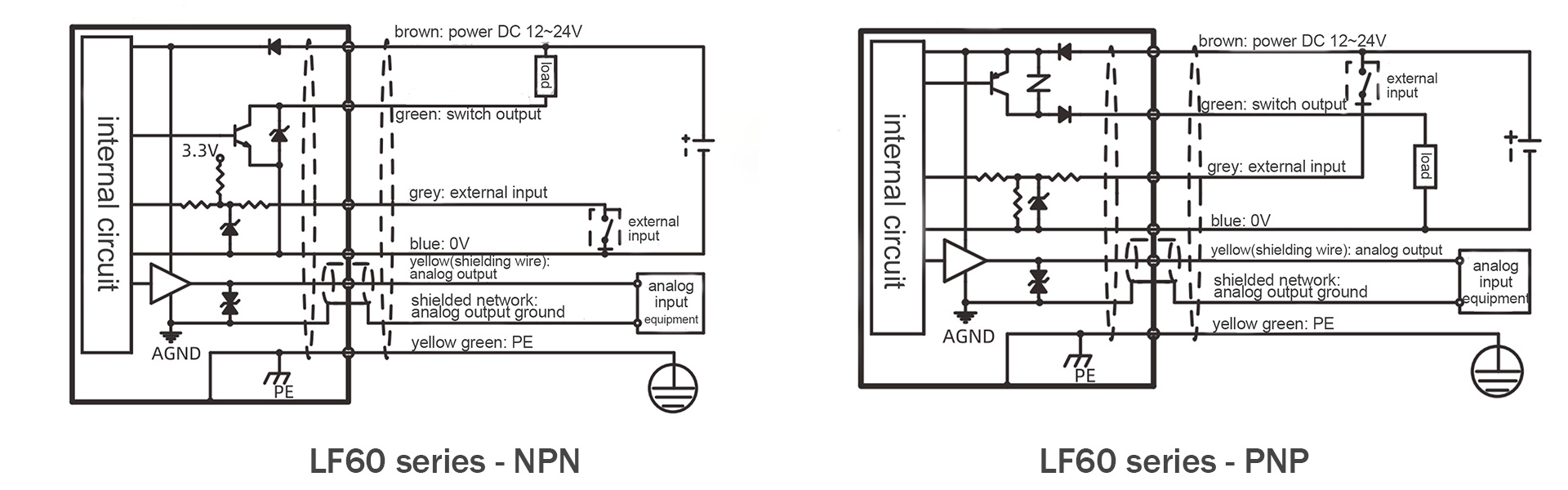

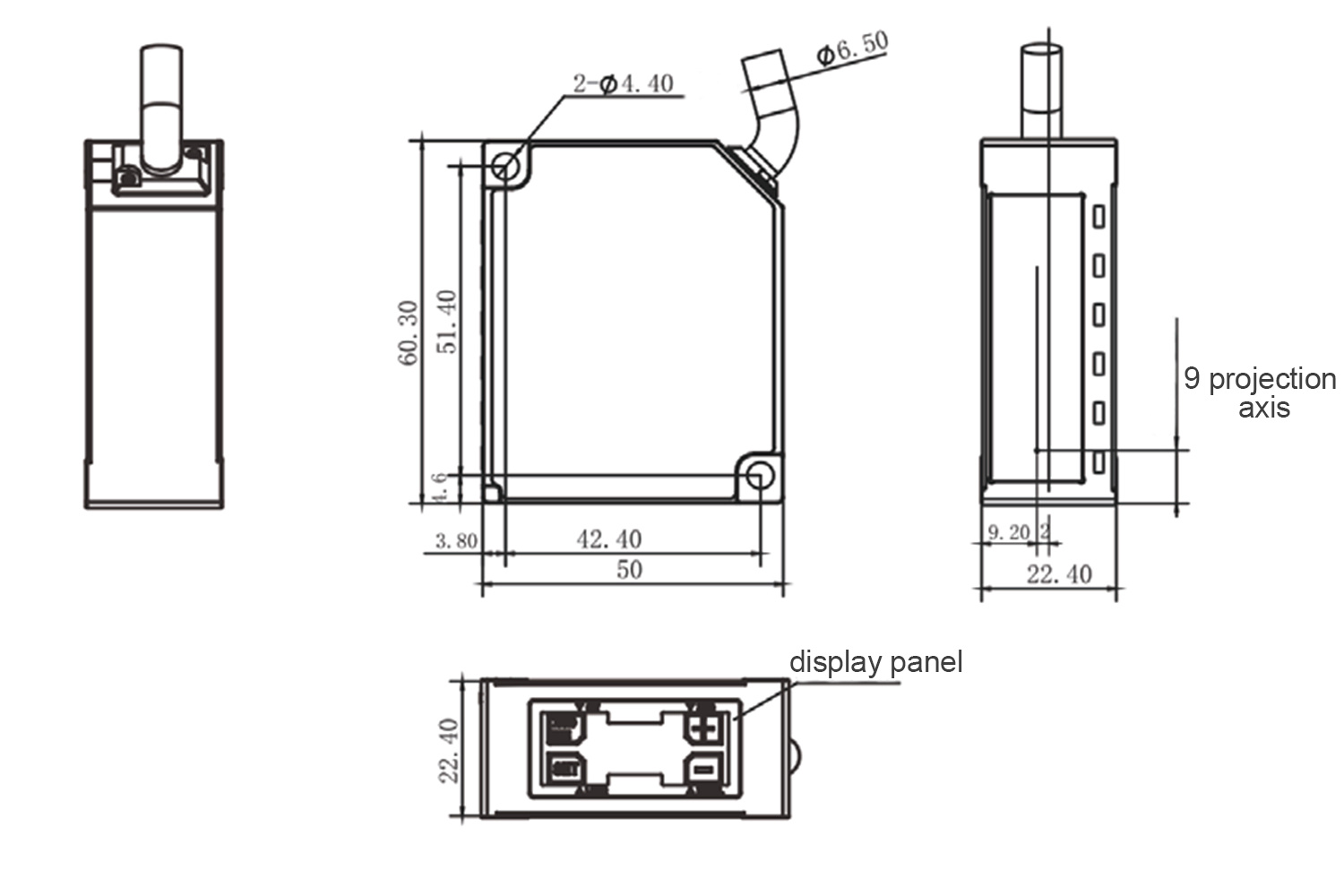

Wiring diagram
-
Type Distance Type Installation Mode Sensing Distance Cable Type Output Type Product Model AC/DC 2 wires Standard Distance Flush 10mm Direct outlet DC/AC-NO IMC30-10BUO-P DC/AC-NC IMC30-10BUC-P M12 connector DC/AC-NO IMC30-10BUO-T3-P DC/AC-NC IMC30-10BUC-T3-P Non-flush 15mm Direct outlet DC/AC-NO IMC30-15NUO-P DC/AC-NC IMC30-15NUC-P M12 connector DC/AC-NO IMC30-15NUO-T3-P DC/AC-NC IMC30-15NUC-T3-P Double Distance Flush 16mm Direct outlet DC/AC-NO IME30-16BUO-P DC/AC-NC IME30-16BUC-P M12 connector DC/AC-NO IME30-16BUO-T3-P DC/AC-NC IME30-16BUC-T3-P Non-flush 25mm Direct outlet DC/AC-NO IME30-25NUO-P DC/AC-NC IME30-25NUC-P M12 connector DC/AC-NO IME30-25NUO-T3-P DC/AC-NC IME30-25NUC-T3-P DC 2 wires Standard Distance Flush 10mm Direct outlet DC-NO IMC30-10BDO-P DC-NC IMC30-10BDC-P M12 connector DC-NO IMC30-10BDO-T3-P DC-NC IMC30-10BDC-T3-P Non-flush 15mm Direct outlet DC-NO IMC30-15NDO-P DC-NC IMC30-15NDC-P M12 connector DC-NO IMC30-15NDO-T3-P DC-NC IMC30-15NDC-T3-P Double Distance Flush 16mm Direct outlet DC-NO IME30-16BDO-P DC-NC IME30-16BDC-P M12 connector DC-NO IME30-16BDO-T3-P DC-NC IME30-16BDC-T3-P Non-flush 25mm Direct outlet DC-NO IME30-25NDO-P DC-NC IME30-25NDC-P M12 connector DC-NO IME30-25NDO-T3-P DC-NC IME30-25NDC-T3-P
