Displacement sensor
LF90 series
Key words:
LF90 series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: LF90 series
- Commodity ID: LMF90
- Category: Displacement sensor
- Model No.: LF90
Laser displacement sensors use lasers as measurement media, which are less susceptible to interference from surrounding environments such as magnetic fields and light, and have strong anti-interference capabilities.
The measurement results have good repeatability, which can ensure the consistency and accuracy of the measurement, and have good repeatability.
Laser displacement sensors are small in size and light in weight, making them easy to integrate into various automation equipment and systems, facilitating automated measurement and control. -
● Small light spot, high precision
● Analog switchable current and voltage
● Multiple sensing distance and models
● Automatic adjustment of light intensity
● Optional interfaces, TCP/IP RS485 analog switchingGeneral Parameters

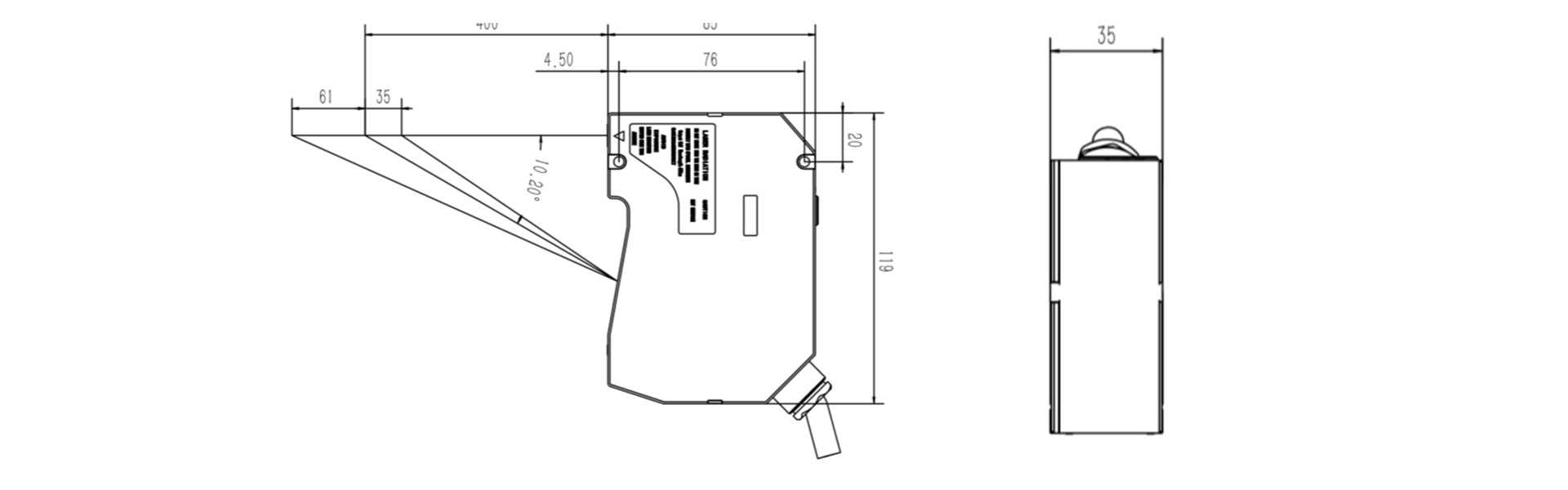

Product Parameter Model Small light spot LF90-030 LF90-050 LF90-080 LF90-150 LF90-400 LF90-500 Wide light spot LF90-030-W LF90-050-W LF90-080-W LF90-150-W LF90-400-W LF90-500-W Reference distance 30mm 50mm 80mm 150mm 400mm 500mm Measurement range -5mm~5mm -9mm~8mm -17mm~15mm -47mm~35mm -100mm~100mm -650mm~250mm Light source 655nm（laser class 3A） Spot Small light spot Φ60μm Φ75μm Φ110μm Φ190μm Φ450μm Φ500μm diameter Wide light spot 60*400μm 75*480μm 110*720μm 190*1300μm 450*1300μm 500*6000μm Repeatability 0.05μm 0.1μm 0.2μm 0.5μm 2μm 2μm Linearity ±0.05%F.S. 土0.02%F.S.(at 250mm-450mm) ±0.05%F.S.(at 250mm-750mm) ±0.1%F.S.(at 250mm-1150mm) Electrical Parameters Supply voltage 12~24VDC Current consumption >10W Control output Communication port One 100Base-TX，one RS485 Analog output 1 route analog output,analog voltage and analog current selected by model IO output 4 routes，judgment status output Output action NPN/PNP, light on /dark on switchable Short circuit protection Provided (automatic recovery type) Analog output Voltage analog output range: 0~10V; Current analog output range: 4~20mA Sampling frequency 1/2/5/10/20/50/88k Hz External output 2（support NPN/PNP） Mechanical Parameters Housing material Aluminium alloy Connecting type Φ0.15mm 11 core complex cable 2m Weight 380g Protection rating IP67 Environmental Parameters Ambient feature 0.01%F.S./℃ Ambient lightness Incandescent lamp 10000Lux Ambient temperature 0~50℃ (no freezing, no condensation) 35%~85%RH Storage temperature -20~70℃,35%~85%RH Vibration resistance 10~55Hz, amplitude of vibration 1.5mm, in X、Y、Z directions, 2h in each direction, compliance with IEC 68-2-6Fc standard Dimensional diagram

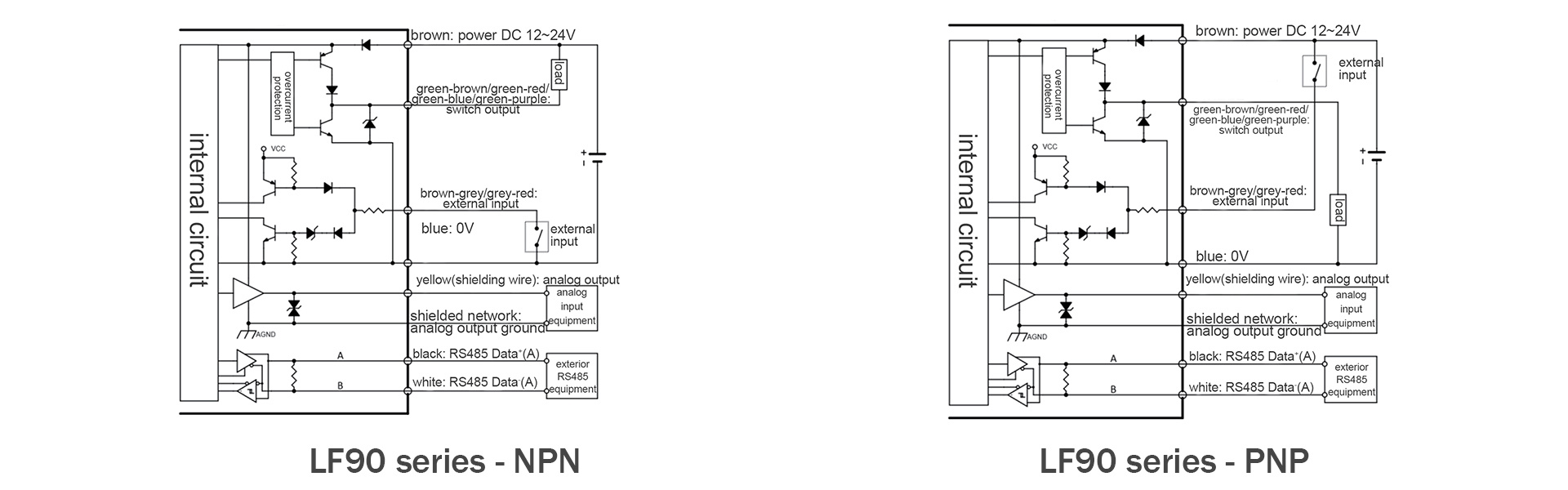

Wiring diagram
