Displacement sensor
JF24 series
Key words:
JF24 series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: JF24 series
- Commodity ID: JF24
- Category: Displacement sensor
- Model No.: JF24
This type is contact displacement sensors and composed by an amplifier and detection heads.
-
● High precision grating ruler measurement method
● Multiple digit display of measurement values
● Resolution up to 0.1 μ m
● The highest accuracy can reach 1 μ m, with no cumulative error
● RS485 communication outputGeneral Parameters

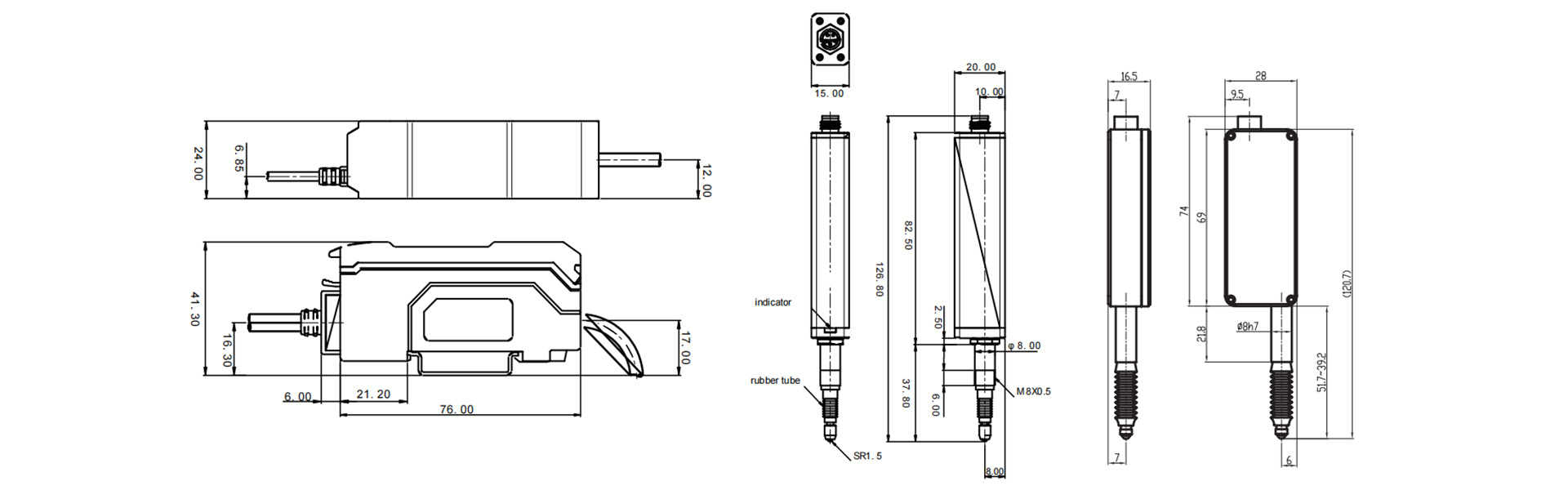

General Parameters-Amplifier Product model JF24-01N JF24-01P Product type NPN PNP Display range -29999~29999 Measuring accuracy 1μm Response time 10ms, 50ms,100ms, 500ms, 1000ms Electrical/Mechanical Parameters Supply voltage 12~24VDC±10% Power consumption max.2200mw(when 30V, max.73.3mA) Output control NPN collector open circuit 40V, maximum 50mA; Remaining voltage: 1V maximum PNP collector open circuit 30V, maximum 50mA; Remaining voltage: 1V maximum Control input input time: min.10ms Reaction time ＜1ms Current consumption 15mA and below Material Polycarbonate (PC) Environmental Parameters Ambient temperature -10℃~50℃, no freezing Ambient humidity 35~85%RH, no freezing Protection rating IP40 Vibration resistance 10 to 55 Hz Double amplitude 1.5 mm in the X, Y, Z axis directions respectively, 2 hours General Parameters-Sensing heads Product model JF-E10 JF-E12 Measuring range 0~12.5mm Variable range 0~12.5mm Measuring accuracy 1μm Resolution 0.1μm Electrical/Mechanical Parameters Supply voltage 5V Measuring force ≤1.5N Mechanical lifespan over 1 million times Material Sensor head– stainless, sheath-viton Environmental Parameters Ambient temperature Working temperature: 0~50 ℃; storage temperature: -10~60 ℃ Protection rating IP65 Dimensional diagram

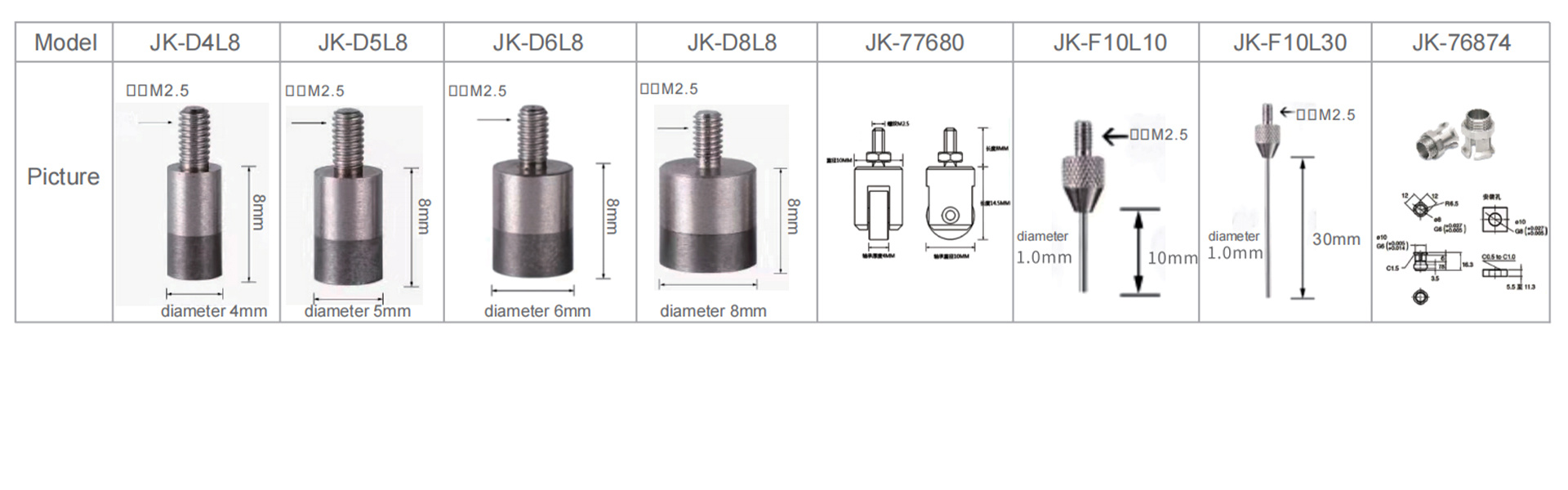

Accessories
-
Product Type Output Type Product Model Amplifier NPN JF24-01N PNP JF24-01P Sensing pencil - JF-E10 - JF-E12
