Proximity sensors
ID06 series-3 wires
Key words:
ID06 series-3 wires
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: ID06 series-3 wires
- Commodity ID: ID062
- Category: Proximity sensors
- Model No.: ID06
Compact proximity sensor with diameter only 6.5mm. Stainless housing made it perfect performance on corrosion resistance. The cylindrical proximity sensor series is available in sizes ranging from M6-M30, with multiple detection distances and installation options for customers to choose from, including flush and non-uniform installation methods.
Compact miniature proximity sensor with diameter only 6.5mm. Stainless housing made it perfect performance on corrosion resistance. The cylindrical proximity sensor series is available in sizes ranging from M6-M30, with multiple detection distances and installation options for customers to choose from, including flush and non-uniform installation methods.
-
General Parameters

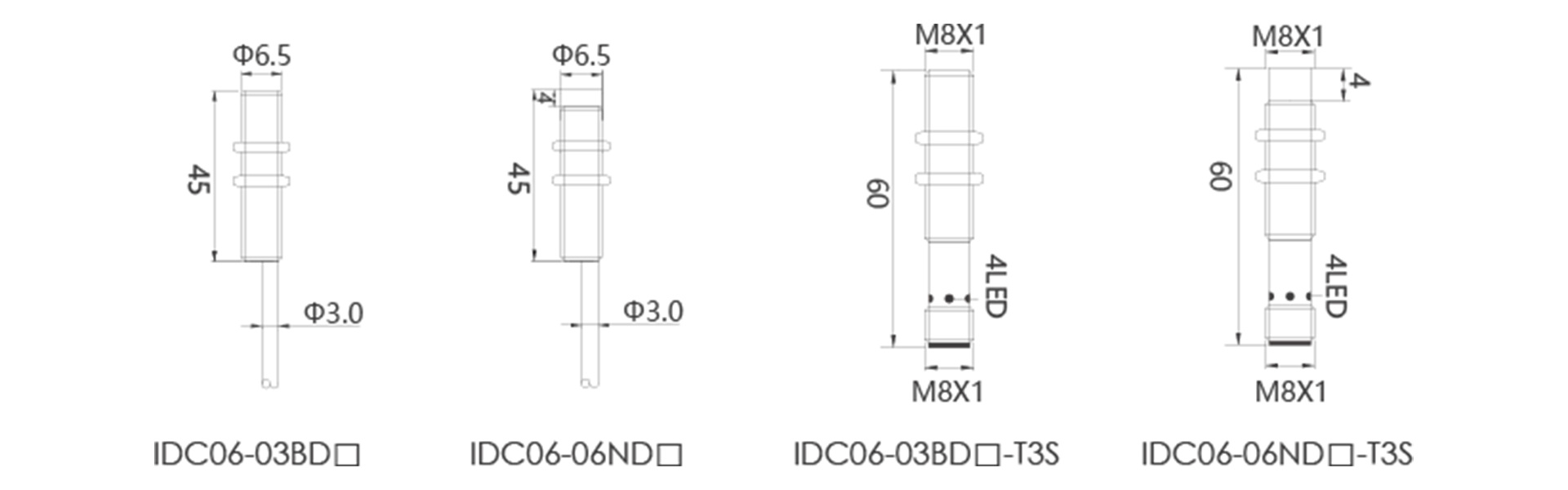

Parameters Type 3 wires Inductive proximity sensors Model IDC06-03B□□ IDC06-06N□□ IDC06-03B□□-T3S IDC06-06N□□-T3S Installation mode Flush Non-flush Flush Non-flush Sensing distance 3mm 6mm 3mm 6mm Hysteresis ＜15%of the sensing distance Switch frequency 1000Hz 500Hz 1000Hz 500Hz Electrical Parameters Supply voltage 10~30VDC Load current 100mA Voltage drop ≤1.5V Repetitive accuracy <1%（ Sr） Operation mode NPN/PNP，normally open(NO),normally closed(NC) Circuit protection Reverse polarity protection, short circuit protection, over voltage protection Indication light Yellow light Insulation resistance Min.50MΩ（ 500VDC/1000VDC） Dielectric strength 500VAC, 1min, between electrical appliances and housing Mechanical Parameters Size Refer to product drawing Housing material Stainless Sensing surface Material: PBT Cable Direct outlet, anti-oil PVC cable,wire length 2m; Optional M8 connector type Cable diameter Φ3mm Cable cross section 3*0.15mm² Screw size M8 Environmental Parameters Ambient temperature -25~70℃（ no freezing, no condensation） Vibration resistance 10~55HZ (1.5mm amplitude for 30 minutes each in X,Y,Z directions) (when outage) Protection rating IP67 General Parameters
-
Type Distance Type Installation Mode Sensing Distance Cable Type Output Type Product Model 3 wires Standard Distance Flush 3mm Direct outlet NPN-NO IDC06-03BNO-P PNP-PO IDC06-03BPO-P NPN-NC IDC06-03BNC-P PNP-PC IDC06-03BPC-P M8 connector NPN-NO IDC06-03BNO-T3S-P PNP-PO IDC06-03BPO-T3S-P NPN-NC IDC06-03BNC-T3S-P PNP-PC IDC06-03BPC-T3S-P Non-flush 6mm Direct outlet NPN-NO IDC06-06NNO-P PNP-PO IDC06-06NPO-P NPN-NC IDC06-06NNC-P PNP-PC IDC06-06NPC-P M8 connector NPN-NO IDC06-06NNO-T3S-P PNP-PO IDC06-06NPO-T3S-P NPN-NC IDC06-06NNC-T3S-P PNP-PC IDC06-06NPC-T3S-P
