Proximity sensors
IM12 series-3 wires
Key words:
IM12 series-3 wires
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: IM12 series-3 wires
- Commodity ID: IM122
- Category: Proximity sensors
- Model No.: IM12
M12 diameter inductive switch is economical type and easy to operate. It can alternative for mini switch and limit switch. G-TEK supplies various diameters M6, M8, M12, M18, M30 and various wiring modes, such as direct outlet wiring type and connector type, making it convenient for customers to use in various installation environments.
M12 diameter inductive switch is economical type and easy to operate. It can alternative for mini switch and limit switch. G-TEK supplies various diameters M6, M8, M12, M18, M30 and various wiring modes, such as direct outlet wiring type and connector type, making it convenient for customers to use in various installation environments.
-
● The cylindrical proximity sensor, housing diameter M12.
● Optional connection type-direct outlet or connector type.
● Reverse polarity protection and short-circuit protection;
● Yellow Led indicates working status of sensor;
● Economical and easy to operate;
● Alternatives for mini switch and limit switch;
● Delay at power-up, guard against false pulse;General Parameters

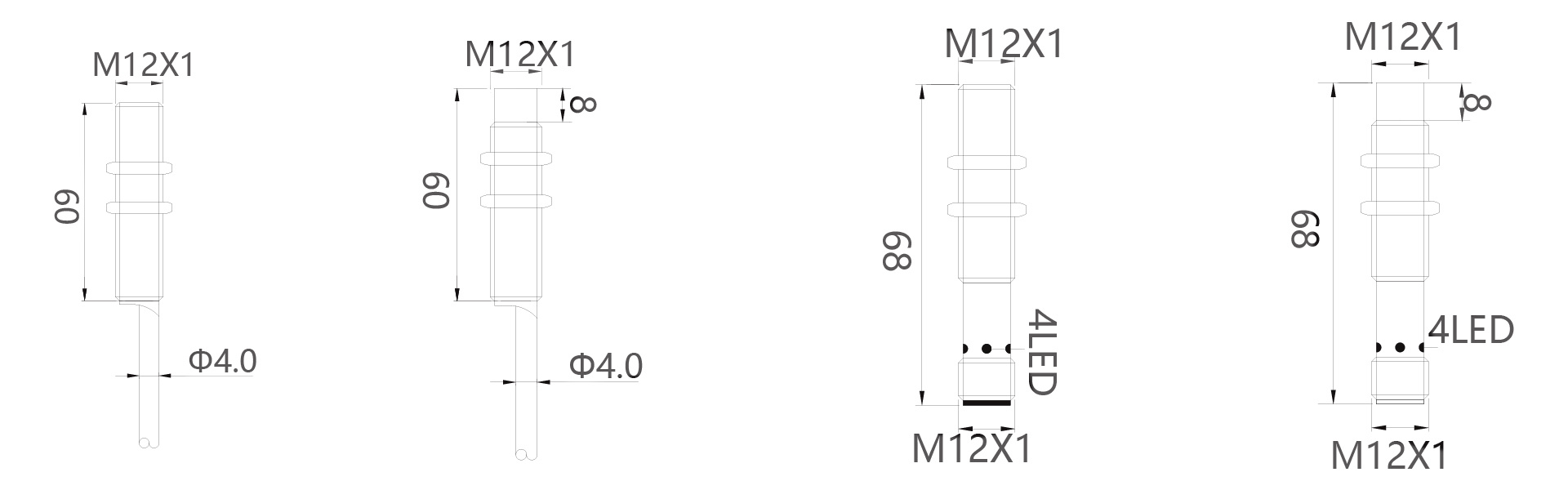

Product Parameters Type DC 3 wires Model IMC12-02B□□ IMC12-04N□□ IME12-04B□□ IME12-08N□□ IMP12-08B□□ IMP12-12N□□ IMC12-02B□□-T3 IMC12-04N□□-T3 IME12-04B□□-T3 IME12-08N□□-T3 IMP12-08B□□-T3 IMP12-12N□□-T3 Installation mode Flush Non-flush Flush Non-flush Flush Non-flush Sensing distance 2mm 4mm 4mm 8mm 8mm 12mm Hysteresis ＜15%of the sensing distance Switch frequency 1500Hz 1500Hz 1500Hz 1000Hz 800Hz 400Hz Electrical Parameters Supply voltage 10~30VDC Load current Max.8mA Voltage drop Max.200mA Repetitive accuracy <1%（ Sr） Operation mode NPN/PNP Normally open(NO), normally closed(NC) Circuit protection Reverse polarity protection, short circuit protection, over voltage protection Insulation resistance Min.50MΩ（ 500VDC/1000VDC） Dielectric strength 500VAC, 1min, between electrical appliances and housing Mechanical Parameters Size Housing material Copper with nickel plating surface Sensing surface Material: PBT Cable Direct outlet, anti-oil PVC cable,wire length 2m; Optional M12 connector Cable diameter Φ3mm Cable cross section 3*0.15mm² Screw size M12 Environmental Parameters Ambient temperature -25~70 ℃（ no freezing, no condensation） Vibration resistance 10~55HZ (1.5mm amplitude for 30 minutes each in X,Y,Z directions) (when outage) Protection rating IP67 Dimensional diagram
-
Type Distance Type Installation Mode Sensing Distance CableType Output Type Product Model DC 3 wires Standard Distance Flush 2mm Direct outlet NPN-NO IMC12-02BNO PNP-PO IMC12-02BPO NPN-NC IMC12-02BNC PNP-PC IMC12-02BPC M12 connector NPN-NO IMC12-02BNO-T3 PNP-PO IMC12-02BPO-T3 NPN-NC IMC12-02BNC-T3 PNP-PC IMC12-02BPC-T3 Non-flush 4mm Direct outlet NPN-NO IMC12-04NNO PNP-PO IMC12-04NPO NPN-NC IMC12-04NNC PNP-PC IMC12-04NPC M12 connector NPN-NO IMC12-04NNO-T3 PNP-PO IMC12-04NPO-T3 NPN-NC IMC12-04NNC-T3 PNP-PC IMC12-04NPC-T3 DC 3 wires Double Distance Flush 4mm Direct outlet NPN-NO IME12-04BNO PNP-PO IME12-04BPO NPN-NC IME12-04BNC PNP-PC IME12-04BPC M12 connector NPN-NO IME12-04BNO-T3 PNP-PO IME12-04BPO-T3 NPN-NC IME12-04BNC-T3 PNP-PC IME12-04BPC-T3 Non-flush 8mm Direct outlet NPN-NO IME12-08NNO PNP-PO IME12-08NPO NPN-NC IME12-08NNC PNP-PC IME12-08NPC M12 connector NPN-NO IME12-08NNO-T3 PNP-PO IME12-08NPO-T3 NPN-NC IME12-08NNC-T3 PNP-PC IME12-08NPC-T3 DC 3 wires Triple Flush 8mm Direct outlet NPN-NO IMP12-08BNO-P PNP-PO IMP12-08BPO-P NPN-NC IMP12-08BNC-P PNP-PC IMP12-08BPC-P M12 connector NPN-NO IMP12-08BNO-T3-P PNP-PO IMP12-08BPO-T3-P NPN-NC IMP12-08BNC-T3-P PNP-PC IMP12-08BPC-T3-P Non-flush 12mm Direct outlet NPN-NO IMP12-12NNO-P PNP-PO IMP12-12NPO-P NPN-NC IMP12-12NNC-P PNP-PC IMP12-12NPC-P M12 connector NPN-NO IMP12-12NNO-T3-P PNP-PO IMP12-12NPO-T3-P NPN-NC IMP12-12NNC-T3-P PNP-PC IMP12-12NPC-T3-P
