Proximity sensors
IM08 series-2 wires
Key words:
IM08 series-2 wires
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: IM08 series-2 wires
- Commodity ID: IM08
- Category: Proximity sensors
- Model No.: IM08
Diameter M8 cylinder inductive sensor, 2 wires and 3 wires are optional. Reverse polarity protection,short-circuit protection with long-life and high reliability. Copper housing and nickel plated surface, more durable in harsh environment. In this proximity sensor series, G-TEK provides customers different diameters M6, M8, M12, M18, M30 and various wiring modes, such as direct outlet wiring type and connector type, making it convenient for customers to use in various installation environments.
Diameter M8 cylinder inductive sensor, 2 wires and 3 wires are optional. Reverse polarity protection,short-circuit protection with long-life and high reliability. Copper housing and nickel plated surface, more durable in harsh environment. In this proximity sensor series, G-TEK provides customers different diameters M6, M8, M12, M18, M30 and various wiring modes, such as direct outlet wiring type and connector type, making it convenient for customers to use in various installation environments.
-
● The cylindrical proximity sensor, housing diameter M8.
● Reverse polarity protection and short-circuit protection;
● Yellow Led indicates working status of sensor;
● Economical and easy to operate;
● Alternatives for mini switch and limit switch;
● Delay at power-up,guard against false pulse;General Parameters

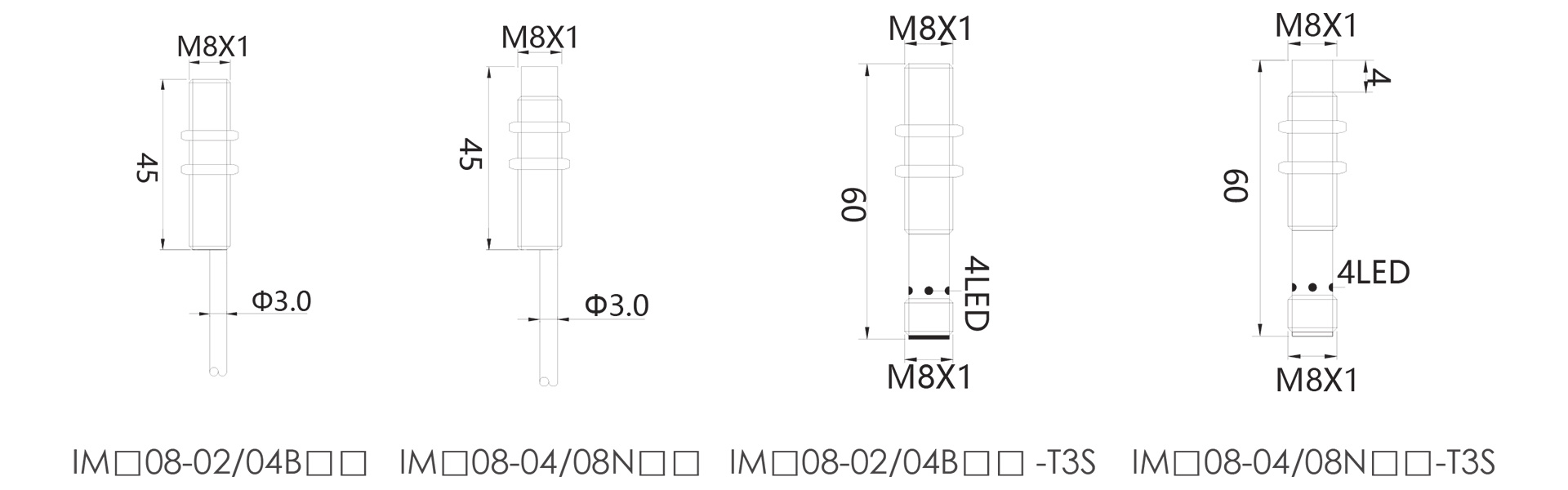

Product parameters Type 2 wires Model IMC08-02BD□ IMC08-04ND□ IMC08-02BD□-T3S IMC08-04ND□-T3S Installation mode Flush Non-flush Flush Non-flush Sensing distance 2mm 4mm 2mm 4mm Hysteresis ＜15%of the sensing distance Switch frequency 2000Hz 1000Hz 2000Hz 1000Hz Electrical Parameters Supply voltage 10~60VDC Load current 200mA Voltage drop ≤1.5V Repetitive accuracy <1%（ Sr） Output type Normally open(NO),normally closed(NC) Circuit protection Reverse polarity protection, short circuit protection, over voltage protection Indication light Yellow light Insulation resistance Min.50MΩ（ 500VDC/1000VDC） Dielectric strength 500VAC, 1min, between electrical appliances and housing Mechanical Parameters Size Refer to product drawing Housing material Copper with nickle coated Sensing surface Material: PBT Cable Direct outlet, anti-oil PVC cable,wire length 2m; Optional M8 connector type Cable diameter Φ3mm Cable cross section 3*0.15mm² Screw size M8 Environmental Parameters Ambient temperature -25~70℃（ no freezing, no condensation） Vibration resistance 110~55HZ (1.5mm amplitude for 30 minutes each in X,Y,Z directions) Protection rating IP67 Dimensional diagram
-
Type Distance Type Installation
Mode
Sensing
Distance
Cable Type Output Type Product Model 2 wire Standard
Distance
Flush 2mm Direct outlet DC-NO IMC08-02BDO-P DC-NC IMC08-02BDC-P M8 connector DC-NO IMC08-02BDO-T3S-P DC-NC IMC08-02BDC-T3S-P Non-flush 4mm Direct outlet DC-NO IMC08-04NDO-P DC-NC IMC08-04NDC-P M8 connector DC-NO IMC08-04NDO-T3S-P DC-NC IMC08-04NDC-T3S-P
