Photoelectric sensors
PT18 series
Key words:
PT18 series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: PT18 series
- Commodity ID: PT18
- Category: Photoelectric sensors
- Model No.: PT18
Single beam photo eye sensor PT18T is designed specially for pedestrian turnstile gates. It has cylindrical and flat shape which is easier for installation.
Single beam photo eye sensor PT18T is designed specially for pedestrian turnstile gates. It has cylindrical and flat shape which is easier for installation. Through beam photoelectric sensor, photoeye, photocell sensor, photo sensor
-
● Through-beam type, max. detection distance 15m
● Compact size, easy to install
● New optical structure design, effectively inhibit light interference
● Stable structure and exquisite appearanceGeneral Parameters

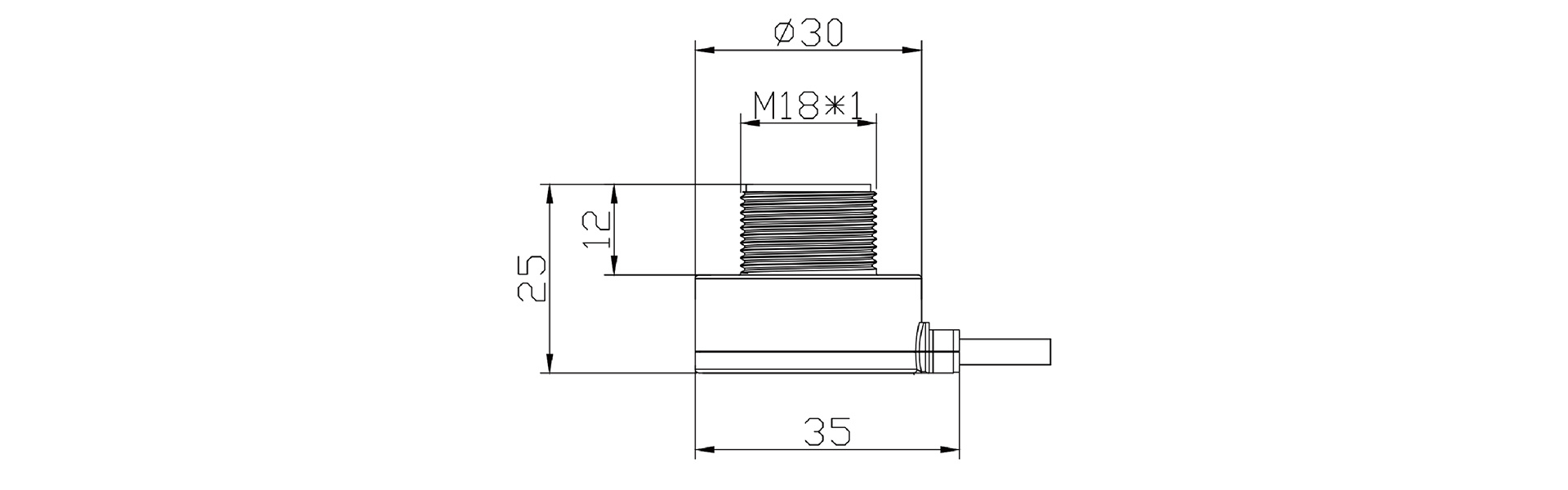

Product Performance Model PT18T-15M Working principle Through-beam Detection range 15M Light source Infrared light Wave length 850nm Min. detection object Φ18mm and above opaque object Electrical Parameters Working voltage 12~24VDC(±10%) No-load current Max.26mA Output current Max.100mA Voltage drop Max.1.5VDC Response time Max.5ms Switching frequency Max.100Hz Action mode Light on/ dark on, selecting by model Control output Transistor output, open collector, NPN/PNP according to model selection Protection circuit Reverse polarity protection, short circuit protection Power indicator Green Action indicator Red Mechanical Parameters Thread specification M18 Shell material PC+ABS Lens material PMMA Connection type 2m cable Cable diameter Φ3.4mm Cable cross section 0.14 mm² Environmental Parameters Ambient lightness Sunlight: max.60000Lux; Incandescent: max.3000Lux Working temperature -30~60℃(no frost, no condensation) Storage temperature -20~70℃ Protection rating IP65 Dimensional diagram
-
Principle Product Series Connection Output Model No. Through-beam PT18T 2m cable PNP PT18T-15M-PD-2m PT18T-15M-PL-2m NPN PT18T-15M-ND-2m PT18T-15M-NL-2m
