Photoelectric sensors
PS18 series
Key words:
PS18 series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: PS18 series
- Commodity ID: PS18
- Category: Photoelectric sensors
- Model No.: PS18
PS18 series photoelectric sensor is one economical plastic shell product which can be a replacement of PM18T,New optical structure,effectively suppress light interference; Special outlet design saves installation space. This model is one specially for turnstile gates, 20m detection range with high stability,attractive price,is the most Cost effective products.
PS18 series photoelectric sensor is one economical plastic shell product which can be a replacement of metal photoelectric sensor PM18T from Tianjin G-TEK Sensor. Product has new optical structure, effectively suppress light interference; Special outlet design saves installation space.
PS18 photocell switches is one specially for turnstile gates, 20m detection range with high stability, attractive price, is the most cost-saving products for entrance automation.
-
● Thru-beam type, max. detection distance is 20 meters
● Compact size, easy to install
● New optical structure design effectively suppresses light interference
● Stable structure and exquisite appearanceGeneral Parameters

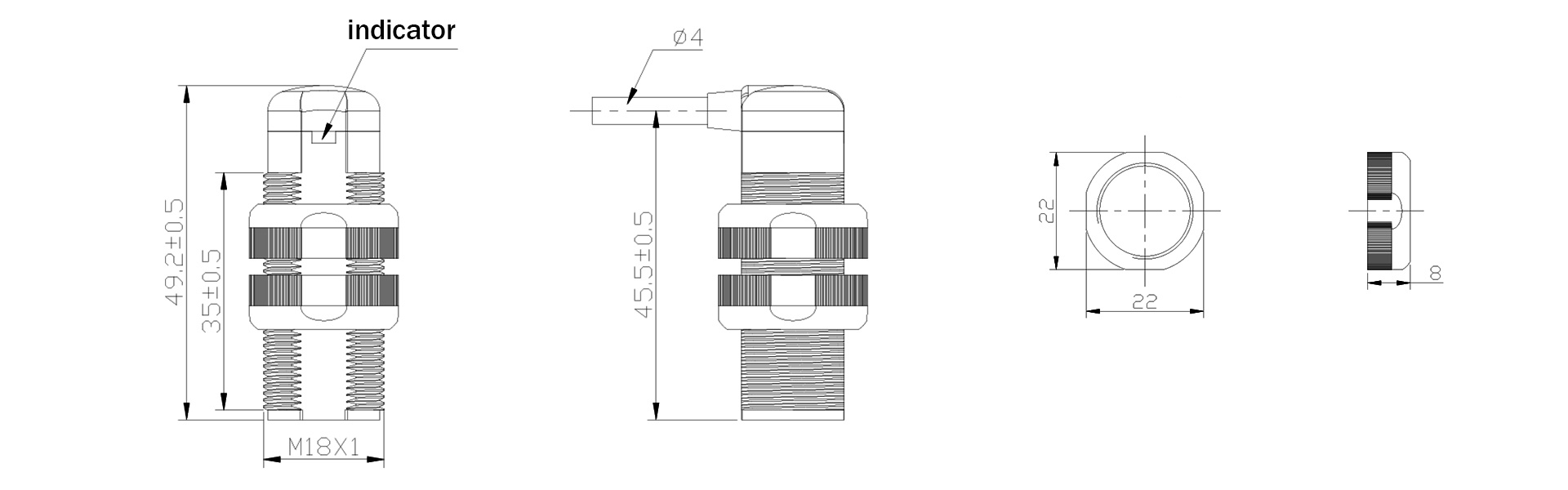

Product Performance Model PS18T Working principle Through-beam Detection range 20M Light source Infrared light Wave length 850nm Min detection object Φ18mm and above opaque object Electrical Parameters Working voltage 10~30VDC No-load current Max.20mA Output current Max.100mA Voltage drop Max.1.5VDC Response time Max.4ms Switching frequency Max.125Hz Action mode Product light on /dark on selecting by model number Control output Reverse polarity protection, short circuit protection, reverse polarity protection Protection circuit Transistor output, open collector, NPN/PNP according to model selection Power indicator Green Motion indicator Red Mechanical Parameters Thread specification M18 Shell material PC+ABS Lens material PMMA Connection type 2m cable Cable diameter Φ4mm Cable cross section 0.2mm² Environmental Parameters Ambient lightness Sunlight : max.60000Lux；Incandescent : max.3000Lux Working temperature -30~60℃(no frost, no condensation) Storage temperature -40~80℃ Protection rating IP67 Dimensional diagram
-
Principle Product Series Connection Output Model No. Through-beam PS18T 2m cable PNP PS18T-2PD-V PS18T-2PL-V NPN PS18T-2ND-V PS18T-2NL-V
