Photoelectric sensors
PF15 series
Key words:
PF15 series
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: PF15 series
- Commodity ID: E001
- Category: Photoelectric sensors
- Model No.: PF15

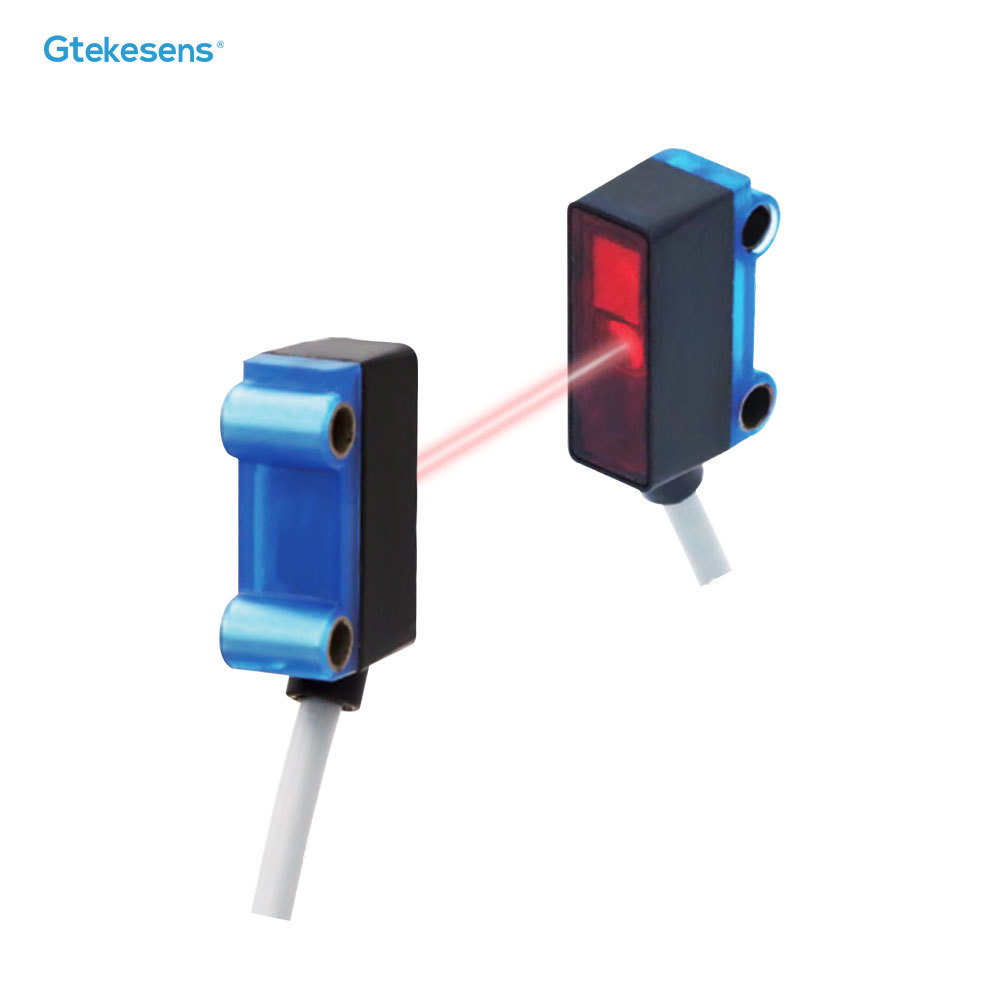

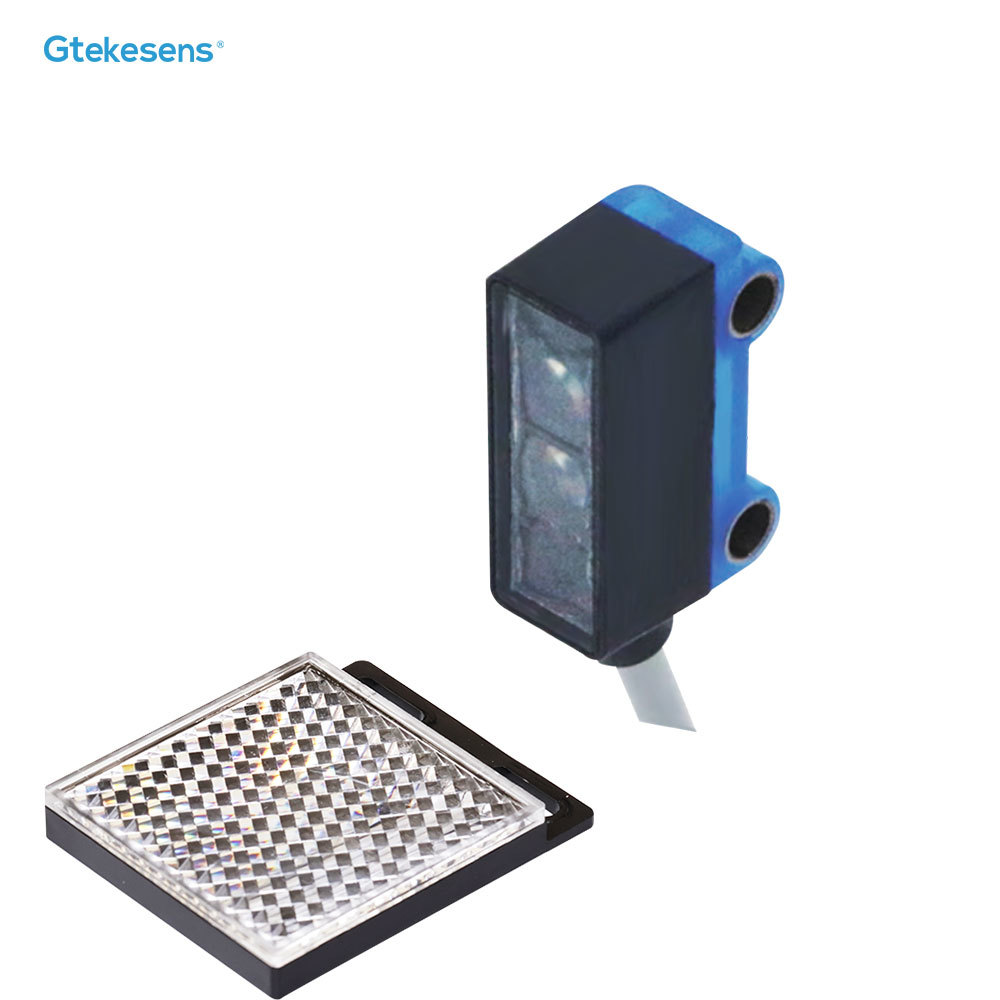

Small in enclosure, strong in function. PF15 series photoelectric sensor has a miniature size of only 14.3mm×26.3mm×8.5mm(thickness 8.5mm, 0.314inch). In addition to the functions of universal optical sensors, it has brighter indicator light, and several light source for option, such as laser-liked light source, visible LED infrared light source, VCSEL visible infrared light source. Compact design which is more suitable for the installation in limited space. G-TEK would like to explore more possibilities on photoelectric sensors in terms of cost-effectiveness, product quality and stability, and practical performance of product functions.
Small in enclosure, strong in function. PF15 series photoelectric sensor/ universal optical sensors has a miniature size of only 14.3mm×26.3mm×8.5mm ( thickness 8.5mm, 0.314inch). In addition to the functions of universal optical sensors, it has brighter indicator light, and several light source for option, such as laser-liked light source, visible LED infrared light source, VCSEL visible infrared light source. Compact design which is more suitable for the installation in limited space.
G-TEK would like to explore more possibilities on photoelectric sensors in terms of cost-effectiveness, product quality and stability, and practical performance of product functions. -
● Brighter light point, accurate positioning
● Strong anti-interference ability
● Anti-ambient light and no cross-talk.
● 45° tilted wire design for greater flexibility and ruggedness.
● Mini-shape and suitable for limited space.
● Built-in metal mounting holes to reduce the impact of vibrationGeneral Parameters
Model PF15B-30 PF15R-1M5 PF15T-2m PF15T-5m Working principle Diffused photoelectric sensor with background suppression function Retro-reflective type Through-beam photoelectric sensor Product Picture
Detection range 2~30mm (1) (2) (3) max. 1.5m (1)(2) max. 2m max. 5m Light source Laser-liked LED, visible red light LED, visible red light VCSEL, infrared light Wavelength 630nm 630nm 850nm Spot diameter Φ2mm@30mm Φ60mm @1.5m - - Min. Detector - Φ5mm and above opaque object Φ5mm and above opaque object Φ10mm and above opaque object Electrical Parameters Working voltage 10~30VDC (Ripple P-P: 10% or less) No-load current 15mA Emitter <10mA; Receiver <15mA Output current ＜50mA Voltage drop ＜1.5V Response time ＜500us ＜1.25ms 1.25ms Switching frequency 1KHz 400Hz 400HZ Action mode Light on, dark on according to the model selection Output type Transistor output, NPN/PNP according to model selection Protection circuit Reverse polarity protection, short circuit protection Action indicator Green light Motion Indicator Yellow Light Mechanical Parameters Dimensions 14.7mm×26.3mm×8.5mm 14.3mm×26.3mm×8.5mm 14.3mm×26.3mm×8.5mm Case material ABS+PC Lens material PC Connection type 2m cable Cable diameter Φ3mm Cable cross section 0.12mm² Environmental Parameters Ambient light intensity Sunlight 30000Lux; Incandescent 3000Lux Sunlight 50000Lux；Incandescent 3000Lux Sunlight 20000Lux;
Incandescent 3000LuxSunlight 30000Lux;

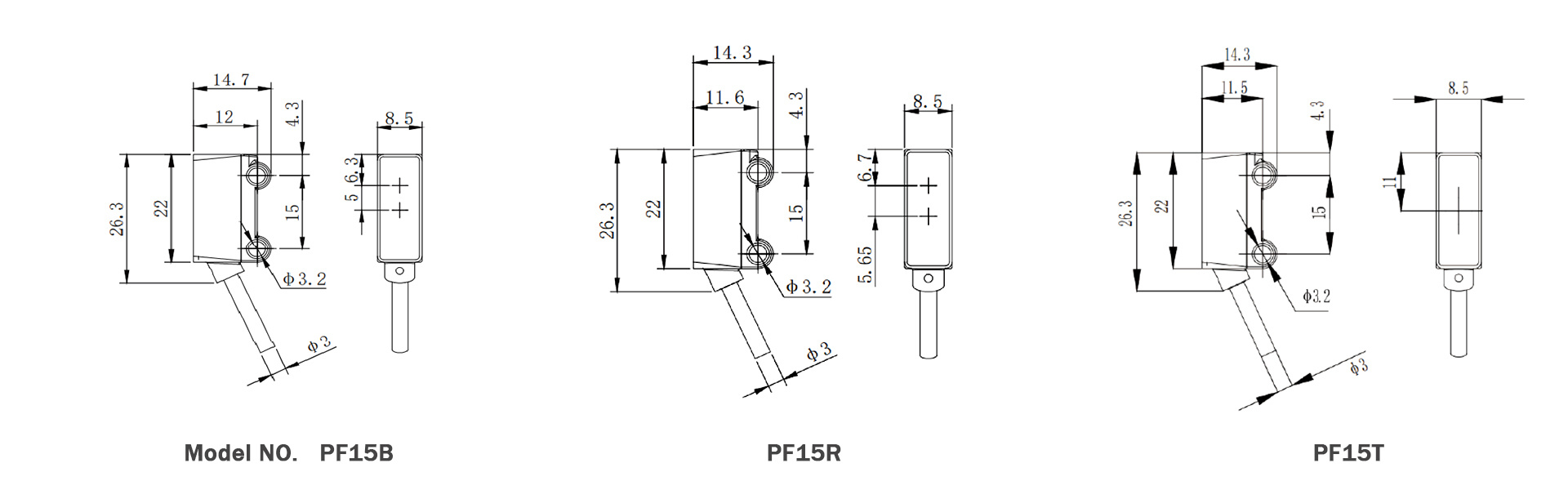

Incandescent 3000LuxWorking temperature -25~55℃ (no frost, no condensation) Storage temperature -30~70℃ (no frost, no condensation) Protection rating IP67 Product dimensional diagram
-
Principle Product Line Connection Output Model No. Background Suppression PF15B 2m cable PNP PF15B-30-RPL PF15B-30-RPD NPN PF15B-30-RNL PF15B-30-RND Through-beam PF15T-2m 2m Cable PF15T-2M-RE PNP PF15T-2M-RPL PF15T-2M-RPD NPN PF15T-2M-RNL PF15T-2M-RND PF15T-5m PF15T-5M-IE PNP PF15T-5M-IPL PF15T-5M-IPD NPN PF15T-5M-INL PF15T-5M-IND Retro-reflective PF15R 2m cable PNP PF15R-1M5-RPL PF15R-1M5-RPD NPN PF15R-1M5-RNL PF15R-1M5-RND
