Nowadays more and more families have own cars even more than two, the increase volume of vehicles and the number of parking spaces in the parking lot is missing makes automatic three-dimensional parking equipment is popular. Stereo parking system has always been known for its efficiency and safety. So how does it ensure the safety of vehicles and people? This is all thanks to the photoelectric sensor. Photoelectric sensors work on the principle of light refraction, energy-saving and environmentally friendly, and accurate detection. G-TEK Sensor has been in the sensor research and development and production industry for 20 years, independent research and development of photoelectric sensors, safety light curtains and laser radar by the customer's favorite.
(1) Safety detection in the area above the drop-off of the parking space Solutions:

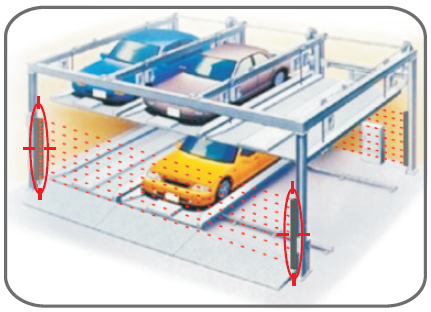

LSE area detection light curtains are usually used in three-dimensional circulating garages. When the vehicle enters the garage, a set of LSE area detection light curtains are installed on the left and right sides of the parking space. In order to detect the absence of other persons or objects in the area above the drop-off of the parking space when the garage is moving in a cycle. Ensuring that people leave the hazardous work area after parking, the device works properly.The LSE Area Detection Light Curtains have a slim profile for easy integration in any confined space. The length can be customized to suit large areas. In order to make the product more suitable for cubic parking applications, a metal impact resistant housing can be added to increase the shock absorption and impact resistance of the product.
(2) Garage guardrail protection Solutions

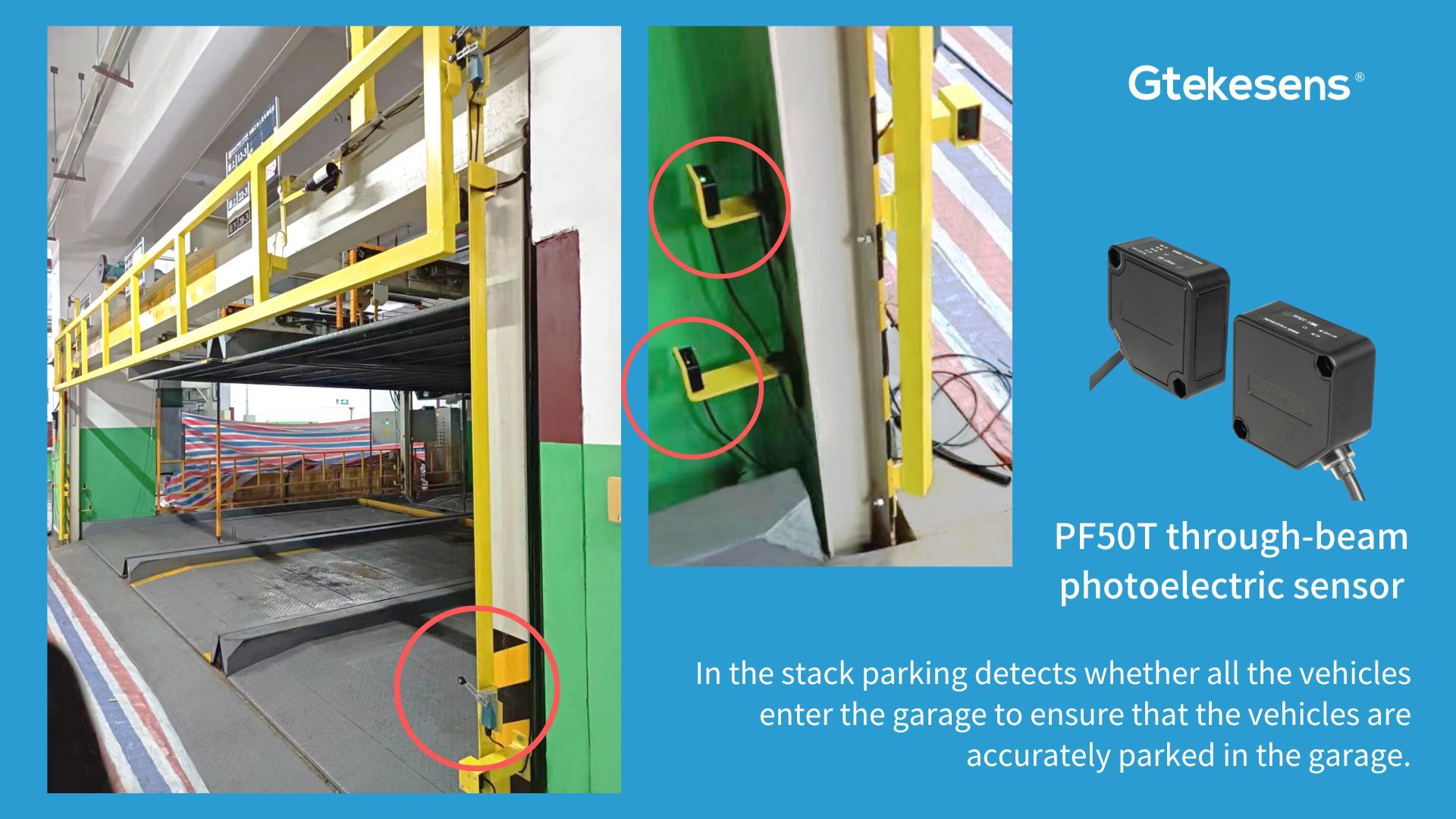

Two lifting and panning three-dimensional garages is currently the most common three-dimensional parking equipment. In the lifting and traversing three-dimensional garage, in order to realize in the parking to take the car, effective isolation of personnel and machinery to ensure the safety of personnel purposes, the need to set up the front guardrail. So in order to make sure that there is no vehicle and personnel in the area where the guardrail falls, we need to install a pair of PF50T counter-reflective sensors on both sides of the area where the guardrail falls.The working principle of PF50T is that the emitted light must be received, so it can effectively reduce the problem of missed detection of highly reflective objects. This ensures a safer process.
The PF50T is also used as a guarding device for large garage doors in large automated parking structures.
(3) LMO LIDAR for automatic parking robot protection Solutions:

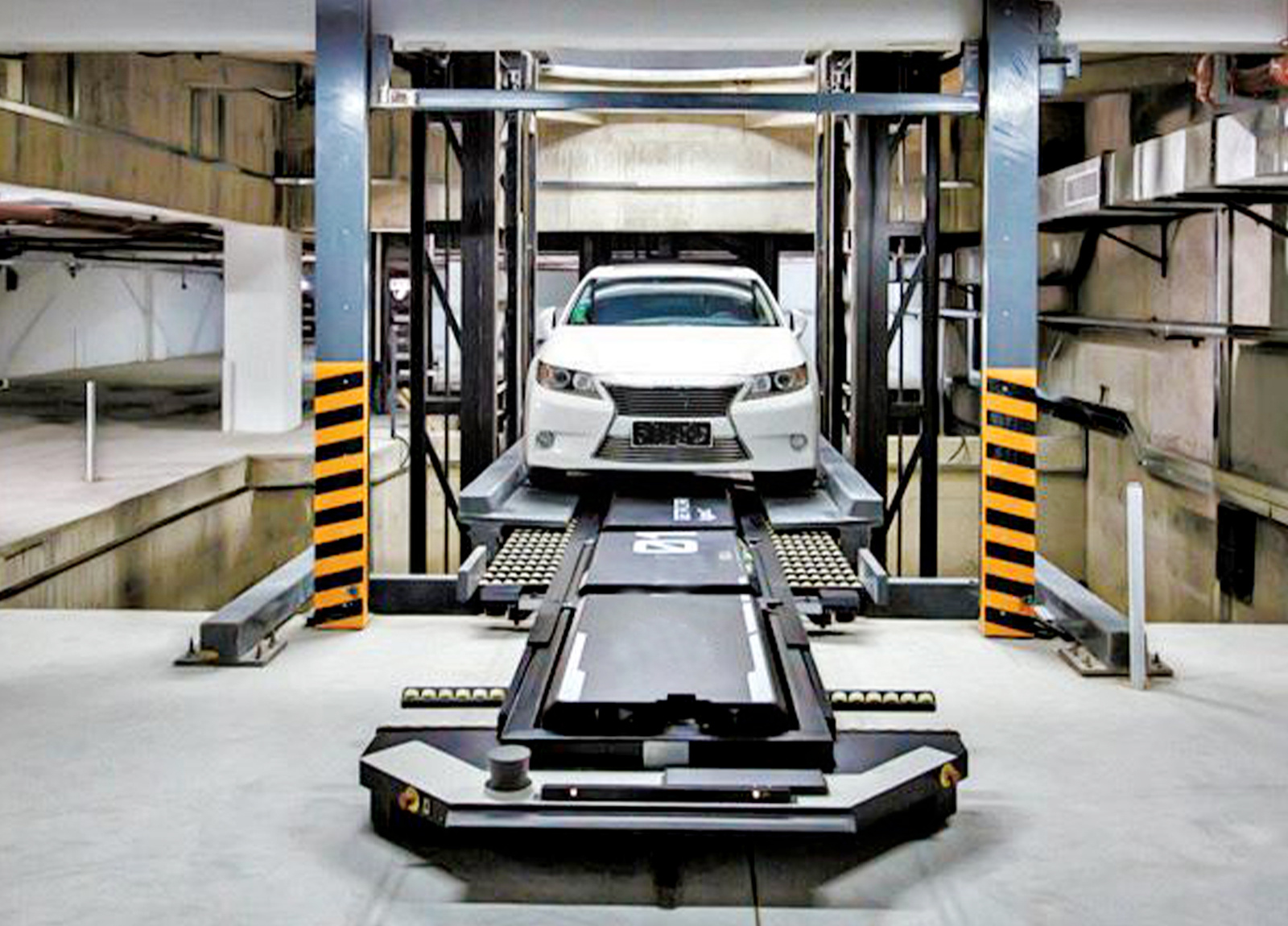

AGV automatic parking robot is also one of the hot trends in the field of automatic parking nowadays. It automatically travels to the bottom of the vehicle, smoothly lifts the vehicle and then accurately delivers it to the access station. And according to the system of intelligent computing, combined with the vehicle volume and other data, the vehicle will be automatically transported to the most suitable location to optimize the parking space, the owner does not need to drive into the garage, the operation is completed by the robot. In order to ensure that the AGV robot in the process of movement to achieve precise determination of the route to avoid collision with obstacles. A small LiDAR is usually placed at the front and rear of the AGV robot, and the LMO LiDAR is compact and easy to integrate. LMO LIDAR is compact and easy to integrate. It has 270° wide-angle detection, eliminating the dead angle of detection. Provides a high level of safety protection.
(4) Entrance safety solution for parking lots Solutions:

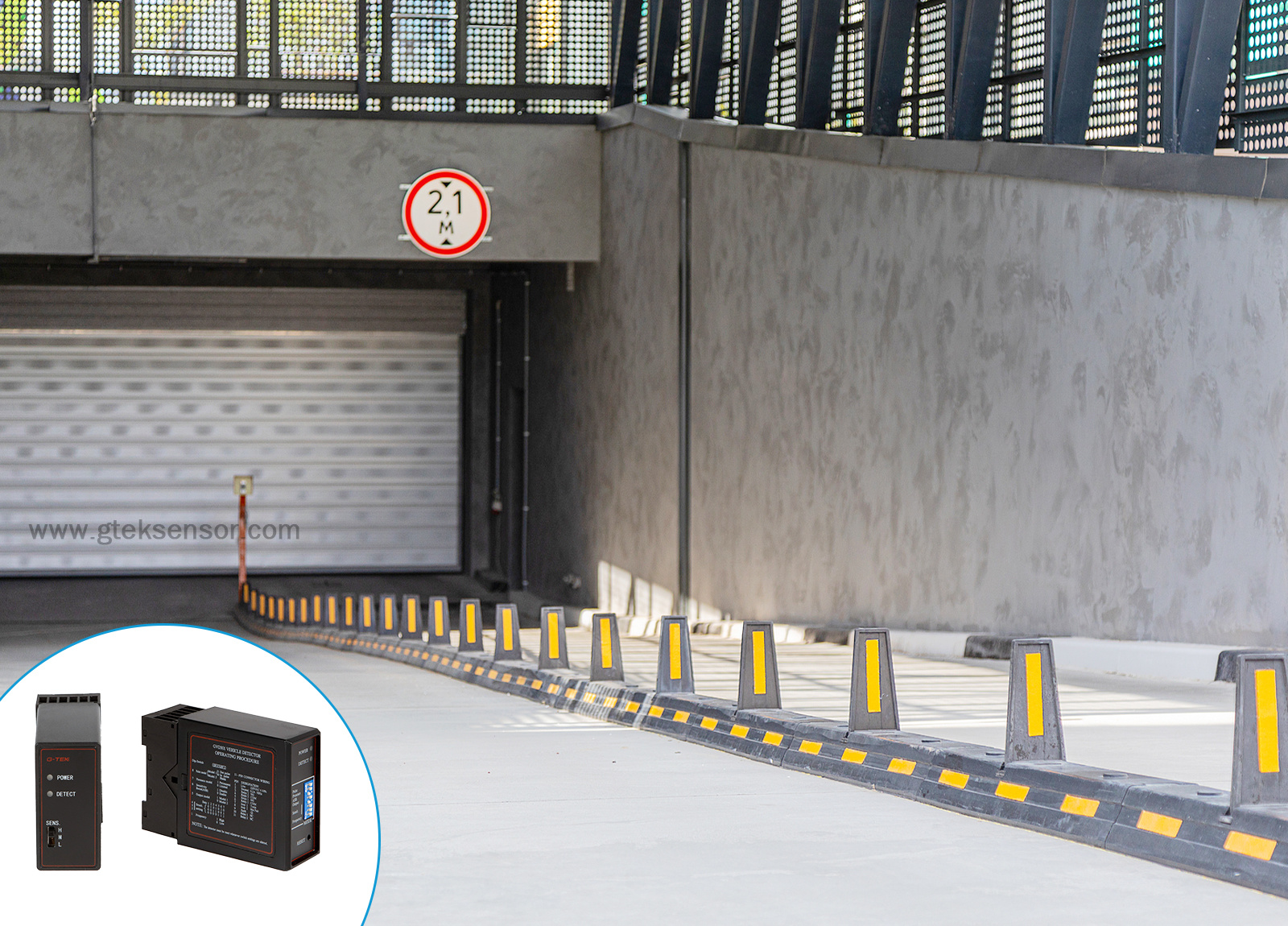

Parking lot vehicle gate is mainly used as a detection of vehicles in and out of the charging system, but in order to prevent the vehicle in the process of passing the gate down to smash the car. Usually GVD vehicle detector will be installed in the ground below the vehicle gate. Mainly as a road gate vehicle anti-smash protection and car over the automatic drop detection.
(5) PF50R laser photoelectric sensors for garage doors protection Solutions:
One or three garage doors are usually placed on the lowest level of a three-dimensional parking building. In order to prevent the hard rolling doors from smashing cars and pedestrians. The PF50R-AR laser sensor has a built-in polarization design to effectively detect highly reflective objects. The working principle of mirror reflection, only one end needs to be connected to electricity. It is easy and quick to install and saves installation time.
