Intelligent transportation sloution
Lidar Multi-lanes Vehicle outline detection system
Key words:
Lidar Multi-lanes Vehicle outline detection system
Related downloads :
- Description
- Specs
- Model
-
- Commodity name: Lidar Multi-lanes Vehicle outline detection system
- Category: Intelligent transportation sloution
LSD-LWH is laser scanning dimension measurement system for the dynamic vehicles on LSD series lidar basis, vehicle length, width and height detection measurement system is undergoing on-site metrology testing. Through testing on different vehicles, trucks and cars

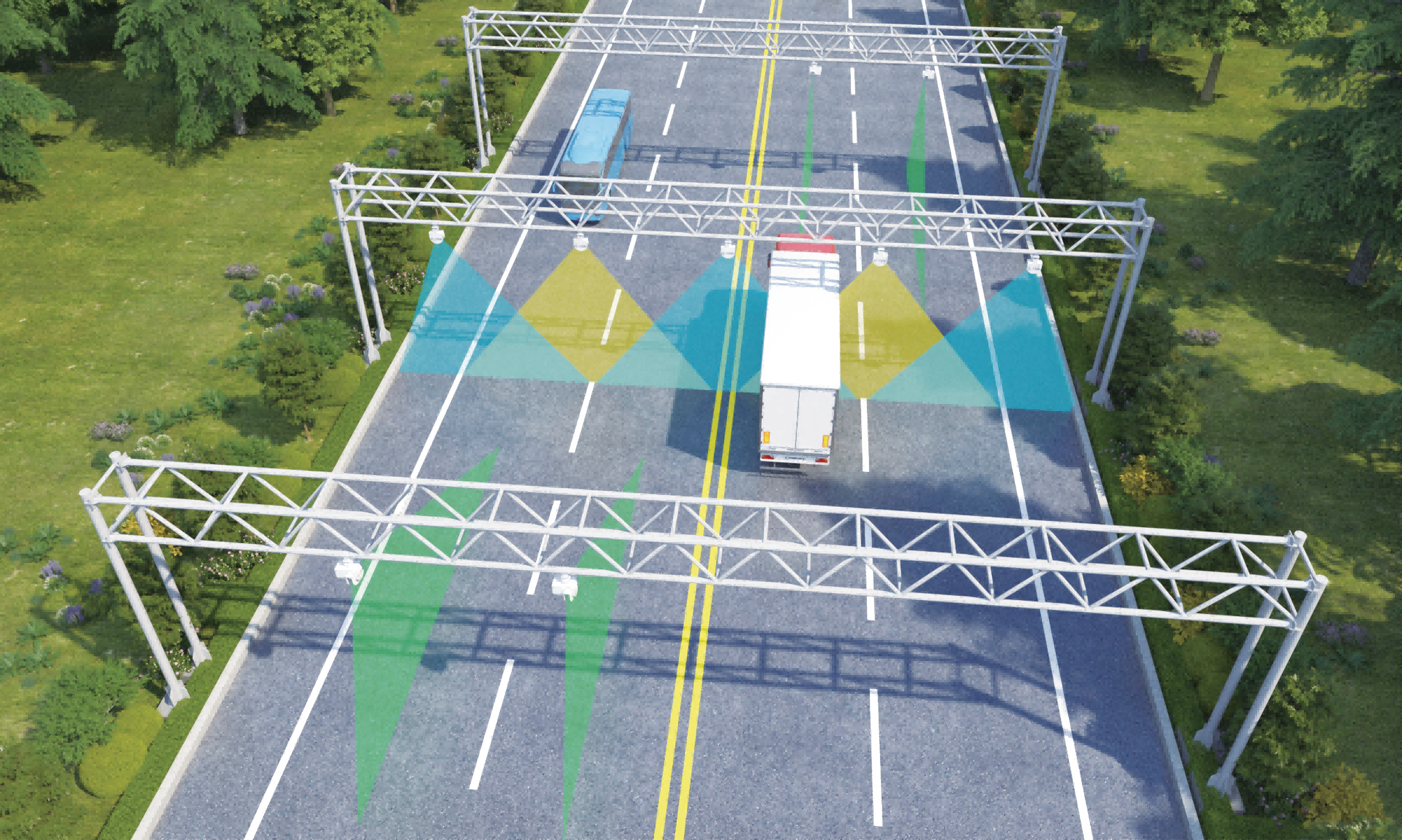

Laser lidar multi-lanes vehicle measurement system -----off-site law enforcement application
The off-site law enforcement vehicle detection system is the latest fully laser scanning dynamic vehicle profile measurement system developedby G-TEK Sensor. The system has optimized the algorithm based on the original system, effectively improving the accuracy of length measurement data forvehicles traveling at high speeds; In addition to contour detection, It can also achieve functions such as motor vehicle flow statistics, vehicle type discrimination, speed detection , and time occupancy statistics. It has high cost-effectiveness and can be quickly deployed in various road environments; Realize effective integration of traffic flow, vehicle types, speed and other information, comprehensively grasp the road operation status, andprovide accurate data sources for the traffic information release system.
System Features
◤Parameters output such as vehicle outline, flowrate, vehicle type, speed, and time occupancyrate；
◤The system is suitable for measuring one-way or two-waylanes；
◤Stable output of cross lane vehicle data；
◤Built in intelligent defrosting function, capable of stable operation in low temperature environments；◤Equippedwithfunctions such as power on self starting and automatic fault detection；
◤The system is stable and suitable for complexroad surface detection, 24/7 operation 。
System parameters

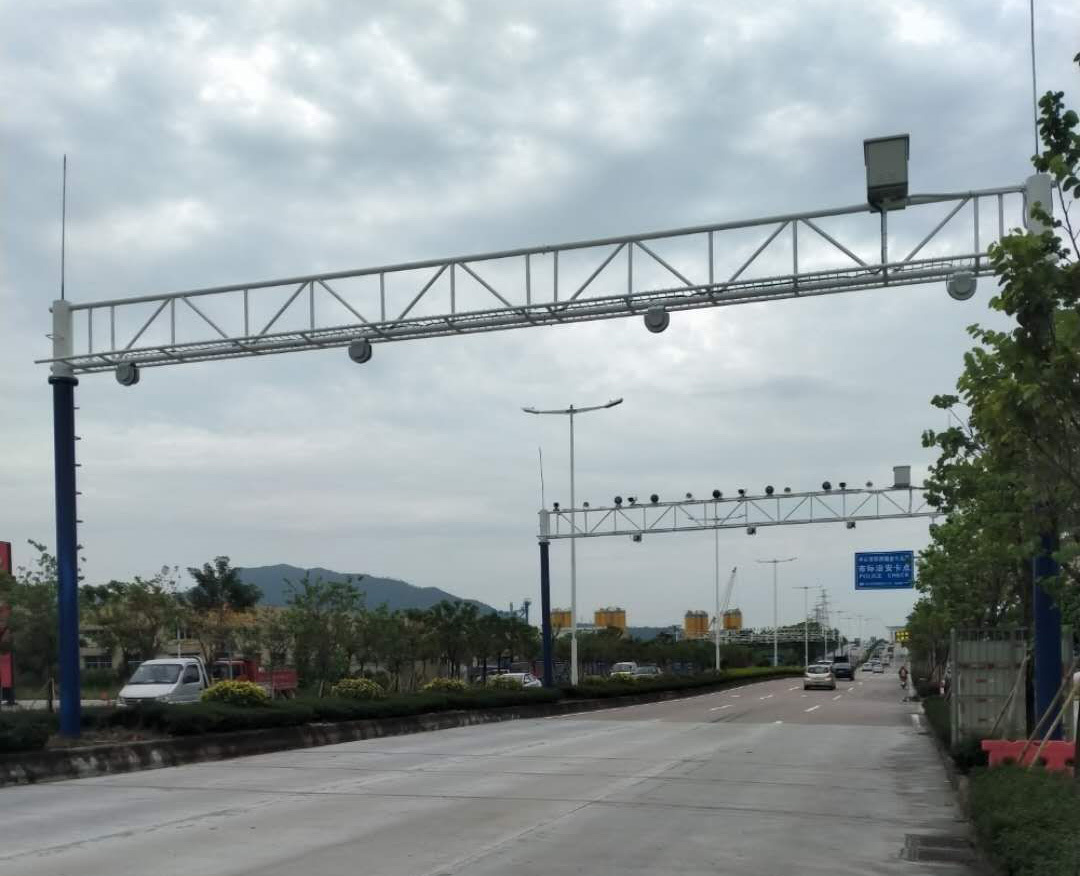

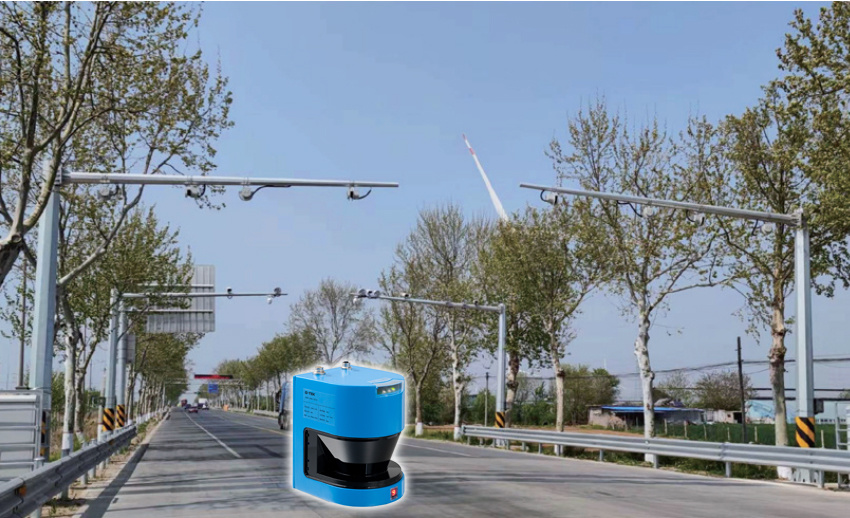

Traffic statistics accuracy ≥98% Vehicle recognition accuracy ≥95% Accuracy of Bus and Truck Identification ≥95% Contour measurement accurancy Length <±150mm Width <±50mm Height <±50mm Vehicle speed detection accuracy 95% Vehicle speed detection range ≤80km/h Number of lane detections ≤8lanes Operation temperature -45℃~80℃ Mean time between failures ≥50000h Application example
